Doppler Flow Image Analyser

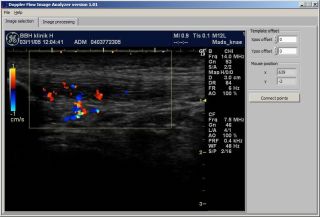

Figure 1. Doppler Flow Analyser with loaded image of Patella tendor

Figure 2. Marrking up points that select the area of interest

Figure 3. Connecting the points to show the connected area of interest. The connected area can be saved as a "template" and reloaded for later use eg. if a re analysis is needed

Figure 4. The analysis view. The image analysis i performed on the selected area. Segments of the image is selected by thresholding and the the areas of the area of interest and the selegted segments is calculated together with the fraction of these values. The Valuse are also savet to a datafile for futrher procerring etc.
